Remember how you used to do puzzles as a kid?
Pieces strewn everywhere, looking for that perfect fit.
At first glance, the picture seems impossible because the pieces are so small and scattered.
Even though the pieces are larger, acoustic treatment can be just as puzzling.
Where does it all go? Do you just cover every surface and hope for the best?
In a perfect world with an unlimited budget, treating every surface in a room would give you incredible results. But most of us are working with a handful of panels and a real-world budget, so you want to be strategic about where they go.

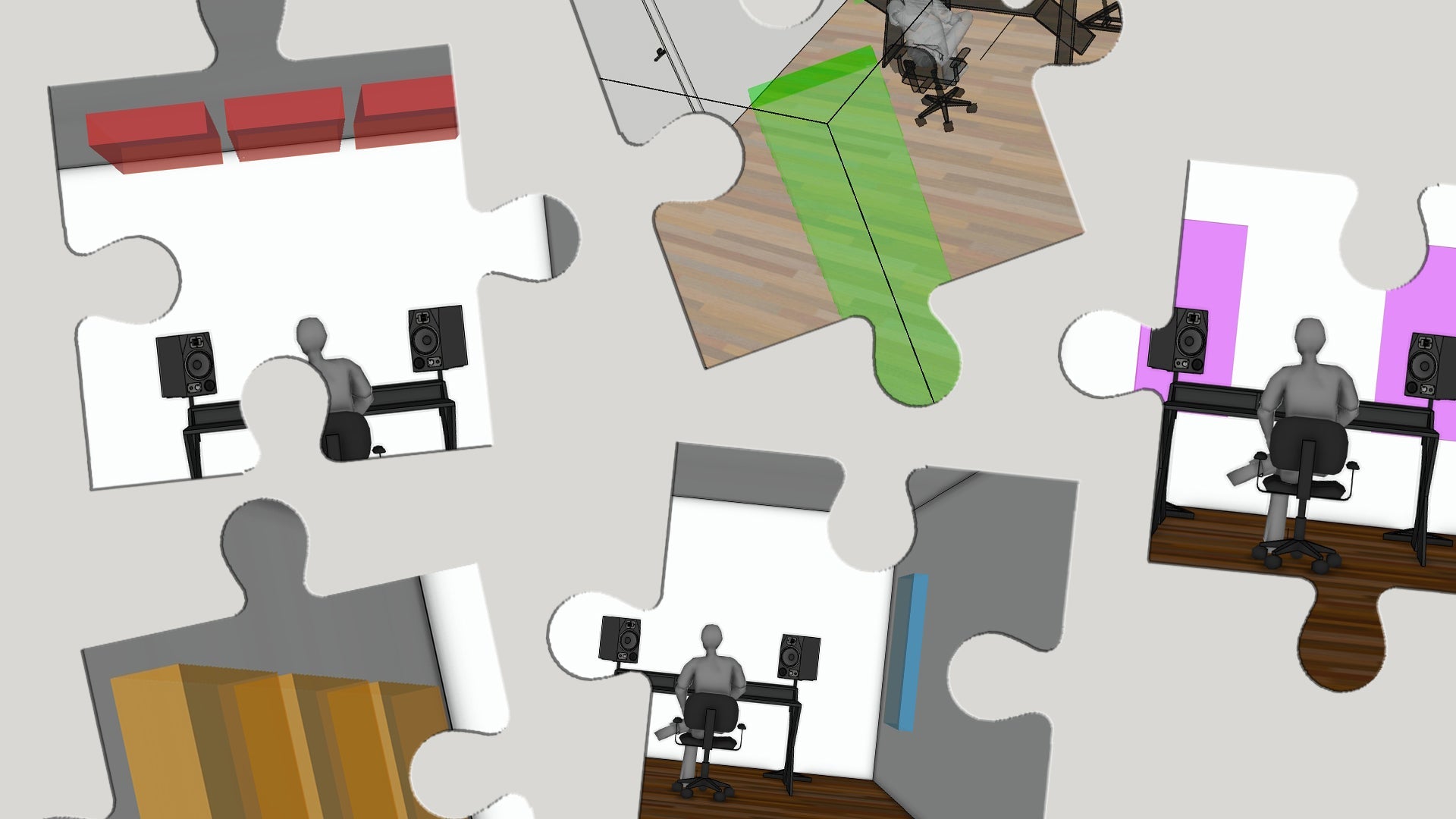

Luckily, there is a blueprint you can follow.
While every room is unique, the acoustic problems rooms face are often exactly the same, so the best place to start is with these five key areas. Think of them as the corner pieces and edges of your puzzle; get these in place, and the picture of your music starts coming together fast.
We’ll tackle these from the standpoint of a studio space for playback and monitoring, so if you’re a mix engineer, mastering engineer, or you have a hybrid production and mixing room, this is for you!
1. Side Walls
The first piece of the puzzle. If you can only get two or four panels, start here. In most home studios, your side walls are the closest boundaries to your listening position, which means they’re where your first reflections happen. Sound bounces off the left and right walls and reaches your ears just milliseconds after the direct sound from your speakers.
That creates comb filtering, which is a phase shift in the sound that makes things sound hollow, uneven, and unclear. It kills the detail and transient response in your mids and highs, and it can make your stereo image feel lopsided or vague. If you’re panning something and you can’t quite tell where it sits, untreated side walls are almost always part of the problem.
When you treat your first reflection points on the side walls, the difference is immediate. You get tighter, more pinpoint imaging. Vocals and instruments come into focus with way more clarity and detail. And you get a much better sense of depth from front to back in your mix, which is one of the hardest things to get right without treatment. You’ll make better EQ and compression decisions because you can actually hear what’s happening.
2. Ceiling
The piece most people overlook. Your ceiling is one of the most overlooked areas in a studio, and one of the most impactful to treat early on. In most home studios, particularly rooms with eight-foot ceilings, it’s the next closest boundary to you after your side walls.
Your head is about four feet off the ground when you’re seated, so the reflection off the ceiling reaches you quickly, typically the second reflection after your side walls. A ceiling cloud will improve your imaging, clarity, and accuracy across the mids and highs, but where you get the biggest benefit is in the low end. An eight-foot ceiling puts your floor-to-ceiling room mode right around 140 Hz, which sits at the bottom of the vocal range and overlaps with acoustic guitars, pianos, bass, drums, and synths. If you don’t treat it, you’ll almost always have a huge bump at that frequency.
When you add a cloud, especially one that’s four to six inches deep, it makes a massive improvement to the clarity, focus, and translation of your low end. This is one of the first areas where you can really start to trust what your monitors are telling you in the low frequencies and make mixing decisions that hold up outside your room.
3. Back Wall
The piece that locks in your low end. Sound radiates out of your speakers and travels directly toward the back wall, which is the wall behind you at your listening position. Because speakers are fairly directional in the mids and highs, a lot of that energy is aimed right at the back wall, and it reflects back toward you. This also happens at low and low-mid frequencies. These reflections can create big dips and peaks in your frequency response that make it really hard to hear the relationship between your kick and bass, and they affect the low end of pretty much everything else in your mix.
This is also where your front-to-back room mode lives, which is where the room really shapes and distorts your low end. If your back wall isn’t well treated from a low-frequency standpoint, it can make it incredibly hard to have your mixes translate or to hear the punch, impact, and definition of your low-frequency instruments.
When you treat the back wall with deep panels, like Bass Trap panels or SubFreQs, you’re controlling both reflections and room modes. The result is better imaging, better depth of field, and a low end that’s more focused and more honest. Your mixes come together faster because you’re making decisions based on what’s actually there, not what the room is adding.
4. Corners
The piece that gives you more depth. Corners aren’t really a key reflection area, but they are one of the most effective places to get serious low-frequency control. Here’s why: most people don’t have twelve inches of depth on their side walls or back wall to dedicate to bass trapping. But if you take a bass trap panel and straddle a corner with it, the center of that two-foot-wide panel sits about twelve inches from the corner. That effectively creates an eighteen-inch deep absorber, which dramatically increases low-frequency performance.
This applies to floor-to-ceiling corners on your front and back walls, and also to wall-ceiling corners around the perimeter of the room. Corner treatment helps control the low end from both an absorption and diffusion standpoint.
When you add bass traps in the corners, you’re going to get better low-end control that translates to faster mixes and smarter EQ decisions. And as your low end improves, you stay more focused, more inspired, and more connected to the music. You’re not getting distracted by resonances or misled by the room. Acoustic treatment is there to help you make the best decisions you’re capable of. It doesn’t shape your taste; you’re still going to be you. But you can be the most capable version of yourself when your room isn’t getting in the way.
5. Front Wall (bonus)
The piece that completes the picture. If you’ve treated the first four areas and you’re looking to take your room even further, the front wall is your next move. This is the wall directly behind your speakers. When speakers are placed close to the front wall, something called speaker boundary interference response (SBIR) kicks in, and it can drastically shape the sound of your low and low-mid frequencies. SBIR creates big dips and peaks in your frequency response depending on where your speakers are placed.
Broadband panels on the front wall can make a significant improvement to the low and low-mid frequency response in your room. You’ll notice more detail, more clarity, better punch, and better accuracy. If the first four areas are the edge pieces and corners of the puzzle, the front wall is when you start filling in the middle and the full picture really comes together.
These five areas are the blueprint.
As you work through them, the picture of your music gets clearer and clearer. Just like a puzzle, you don’t have to finish it all in one sitting. Start where you can, and build from there.
